Chip Sludge Removal Machine
FOODIE

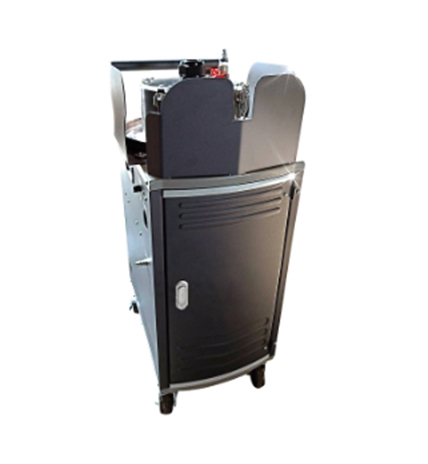

FOODIE Unit (Chip Sludge Sump Cleaner Machine)
- Chip sludge removal machine is often named as a sump cleaner that has fast chips vacuuming, filtration, removing residuals with powerful capacity, etc feature.
- Filtering more than a magnetic separator, non-magnetic chips, swarf, and grinding sludge will be filtered as well
- Working in both water-soluble cutting oil and neat cutting oils to do filtrations
- Turning manual cleaning time from 60 minutes to 5
- Cleaning several coolant tanks in a factory with only one unit required
What is the advantage of a chip sludge removal machine?
- When you use a chip sludge removal machine no downtime for your processing machine.
- Zero consumables
- Filtered release return happens with suction at the same time.
- The chip removal machine adopts air-driven, no electrical plug is required that is lightweight, portable and mobile.
- Vertically fast filter with self-dehydration of up to 90% efficiency
- The chip/sludge removal machine adopts an air gun embedded, switch-type sheet metal cover which minimizes user maintenance reduces cost.
- Optional filter mesh
- 100% visible filtration process with a transparent filter lid
Model | Foodie Chip Sludge Removal Machine |
---|---|
Machine Size(L*W*H) | 420*600*900mm |
Filter Capacity | 10.5L |
Net Weight | 56kg |
Max. Pump Capacity | 90 - 180 Lit. /Minute (47.49 Gallon per min) by water |
Air Pressure | 0.5 Bar - 8.3 Bar (7.25 Psi - 120 Psi) |
Filter | 380 ㎛ / 190 ㎛ / 830 ㎛ |
Filter Material | 304 Stainless Steel |
How many procedures are required to clean a coolant tank by hand?
-
Step 1Power off
-
Step 2Pipeline Disassembly
-
Step 3Pulling Out the Coolant Tank
-
Step 4Removing All Fluids
-
Step 5Removing All Residuals By Hands
-
Step 6Replacing the Coolant Tank
-
Step 7Pipeline Re-installation
-
Step 8Coolant Replacement
-
Step 9Concentration Adjustment
In order to remove all the chips or sludge (iron, aluminum, copper, steel, grinding...etc) that are yielded after the CNC lathe, milling, or grinding processing, the labor and time consuming for cleaning are tremendous. Meanwhile, the sump cleaner machine Foodie will be able to help you achieve saved work just as in the following pictures and video performance.
CNC equipment often results in fluid deterioration and pump blockage due to swarf and metal debris thus chip sludge removal machines clean and filter.

What is the advantage of a chip sludge removal machine?
- When you use a chip sludge removal machine no downtime for your processing machine.
- Zero consumables
- Filtered release return happens with suction at the same time.
- The chip removal machine adopts air-driven, no electrical plug is required that is lightweight, portable and mobile.
- Vertically fast filter with self-dehydration of up to 90% efficiency
- The chip/sludge removal machine adopts an air gun embedded, switch-type sheet metal cover which minimizes user maintenance reduces cost.
- Optional filter mesh
- 100% visible filtration process with a transparent filter lid
